Building Information Modeling (BIM)
BIM files are digital representations of building components, systems, and data that can be used to facilitate collaboration and improve decision-making throughout the building's lifecycle. BIM files typically contain information such as 3D geometry, materials, and data about the properties and performance of building components.
Level of Detail (LOD) in Building Information Modeling (BIM) refers to the level of completeness and detail of a building model at different stages of its lifecycle. The LOD defines the amount of information that should be included in a BIM model at each stage, from conceptual design to construction and operation.
In general, the higher the LOD, the more information is included in the BIM file, making it more useful for construction, operation, and maintenance of the building. The specific level of detail will vary depending on the specific use case and the project requirements.

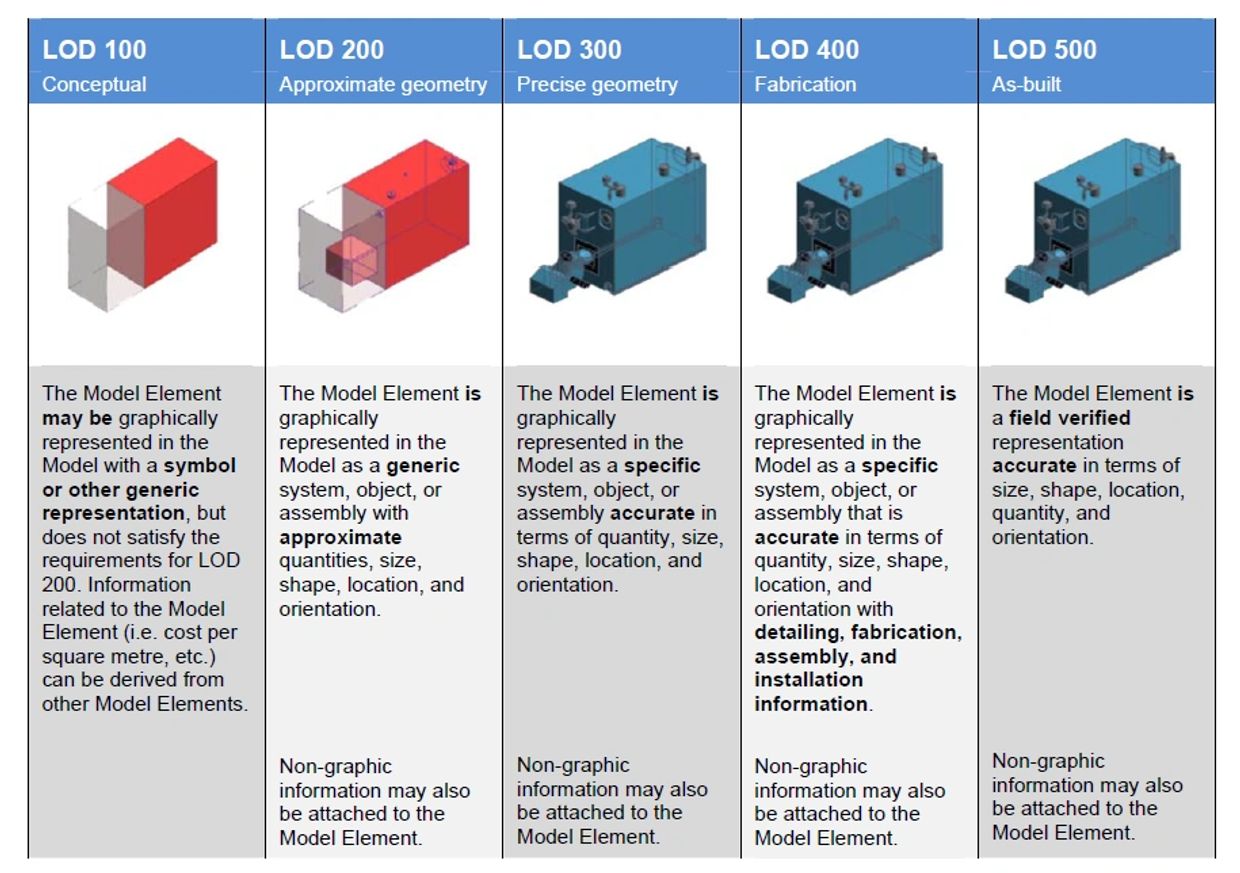

The levels of detail (LOD) in Building Information Modeling (BIM) vary depending on the source, but generally there are five commonly recognized LOD levels:
LOD 100: Conceptual
LOD 200: Schematic
LOD 300: Design Development
LOD 350: Construction Documentation
LOD 400: As-Built/Operational
Each level defines a different level of detail, accuracy, and completeness of the building information model. For example, at LOD 100, the model may only include basic shapes and spaces, while at LOD 400, the model may include detailed information about all building systems, components, and materials, as well as actual as-built conditions. The specific level of detail required for a project will depend on its requirements and the specific use cases for the model.
Level of Detail (LOD) 100 in Building Information Modeling (BIM) refers to a conceptual level of detail in which the building information model includes basic information about the building's form, spaces, and use. The specific information included in LOD 100 can vary depending on the project requirements and the source, but generally the following information is included:
Building form: The overall shape and layout of the building, including its height, shape, and size.
Building spaces: The location and size of spaces such as rooms, lobbies, and elevators.
Use: A basic understanding of how the spaces in the building will be used, such as offices, residential units, or retail spaces.
Site information: Information about the location and size of the building site, as well as its surrounding area.
LOD 100 is typically used during the early stages of a building project to define the basic form, layout, and use of the building. It provides a general understanding of the building and helps to establish the project's scope and budget. However, it is not detailed enough to support construction or operation of the building.
Level of Detail (LOD) 200 in Building Information Modeling (BIM) refers to a schematic level of detail in which the building information model includes more information about the building's form, spaces, and systems. The specific information included in LOD 200 can vary depending on the project requirements and the source, but generally the following information is included:
Building form: A more detailed representation of the building's height, shape, and size, including information about its envelope, roof, and floor systems.
Building spaces: A more detailed representation of the location and size of spaces, including the location of walls, doors, and windows.
Systems: A basic understanding of the building's systems, such as electrical, HVAC, and plumbing systems, and their general locations.
Site information: A more detailed representation of the building site, including information about its topography, existing structures, and surrounding area.
LOD 200 is typically used during the design development phase of a building project to establish a more detailed understanding of the building's form, spaces, and systems. It provides a basis for more detailed design and engineering work, and helps to refine the project's scope and budget. However, it is not detailed enough to support construction or operation of the building.
Level of Detail (LOD) 300 in Building Information Modeling (BIM) refers to a design development level of detail in which the building information model includes even more information about the building's form, spaces, and systems. The specific information included in LOD 300 can vary depending on the project requirements and the source, but generally the following information is included:
Building form: A highly detailed representation of the building's height, shape, and size, including information about its envelope, roof, and floor systems.
Building spaces: A highly detailed representation of the location and size of spaces, including the location of walls, doors, and windows, and their finishes and materials.
Systems: A more detailed representation of the building's systems, including information about the types of equipment, their capacities, and their locations.
Site information: A highly detailed representation of the building site, including information about its topography, existing structures, and surrounding area, as well as the location of utilities and site features.
LOD 300 is typically used during the construction documentation phase of a building project to establish a highly detailed understanding of the building's form, spaces, and systems. It provides a basis for the construction process and supports the coordination of the different building systems and components. LOD 300 is typically sufficient to support the construction of the building, but may not include enough detail to support its operation and maintenance.
Level of Detail (LOD) 350 in Building Information Modeling (BIM) refers to a level of detail in which the building information model includes even more information about the building's systems and components. The specific information included in LOD 350 can vary depending on the project requirements and the source, but generally the following information is included:
Building form: A highly detailed representation of the building's height, shape, and size, including information about its envelope, roof, and floor systems.
Building spaces: A highly detailed representation of the location and size of spaces, including the location of walls, doors, and windows, and their finishes and materials.
Systems: A highly detailed representation of the building's systems, including information about the types of equipment, their capacities, and their locations, as well as information about their interconnections and control systems.
Components: A highly detailed representation of the building's components, including information about their dimensions, materials, and manufacturers, as well as information about their connections and interfaces.
LOD 350 is typically used during the construction documentation phase of a building project to support the coordination of the different building systems and components, as well as the procurement of equipment and materials. It provides a highly detailed understanding of the building's systems and components and supports the construction process by helping to ensure that the different systems and components fit together as intended. LOD 350 is typically sufficient to support the construction and operation of the building.
Level of Detail (LOD) 400 in Building Information Modeling (BIM) refers to a level of detail in which the building information model includes highly detailed information about the building's systems and components, including as-built information. The specific information included in LOD 400 can vary depending on the project requirements and the source, but generally the following information is included:
Building form: A highly detailed representation of the building's height, shape, and size, including information about its envelope, roof, and floor systems.
Building spaces: A highly detailed representation of the location and size of spaces, including the location of walls, doors, and windows, and their finishes and materials.
Systems: A highly detailed representation of the building's systems, including information about the types of equipment, their capacities, and their locations, as well as information about their interconnections and control systems.
Components: A highly detailed representation of the building's components, including information about their dimensions, materials, and manufacturers, as well as information about their connections and interfaces.
As-built information: Information about the building's actual construction, including information about any deviations from the design, as well as information about the materials and equipment that were installed.
LOD 400 is typically used after the building has been constructed to provide a highly detailed understanding of the building's systems and components, including as-built information. It supports the operation and maintenance of the building by providing accurate information about the building's systems and components, as well as information about their interconnections and control systems. LOD 400 is typically the highest level of detail used in BIM and provides a comprehensive representation of the building.
